Home Products LD-600 Advanced Counter Drone System
Strategic Defence Platform

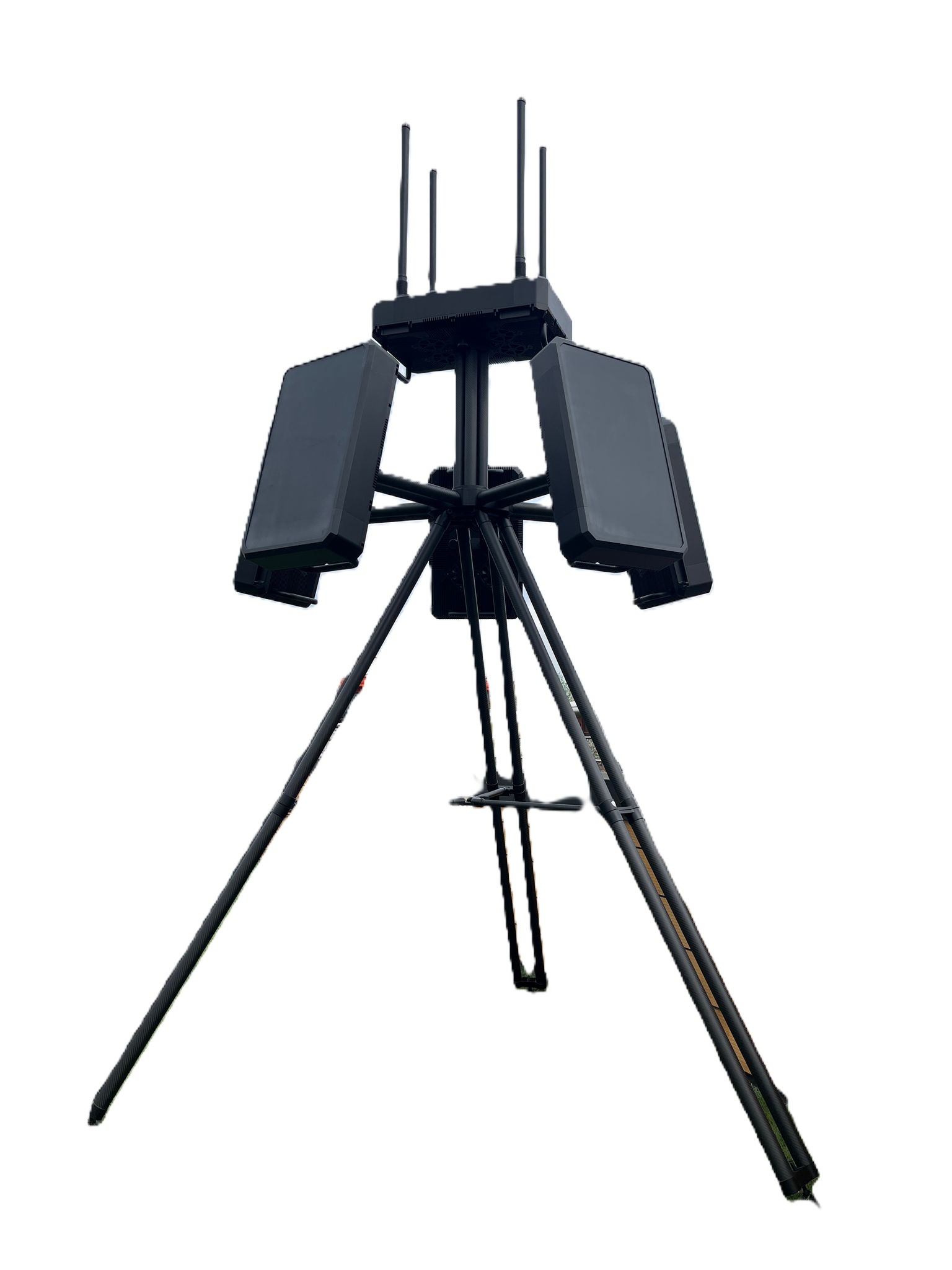

LD-600
Advanced Counter Drone System

The LD-600, a pinnacle in anti-drone defence systems, meticulously engineered for uncompromising protection of stationary installations and armoured divisions.

20KMDetection Range
360°Coverage
24/7Operation
MultiSensor Fusion
20KM Range

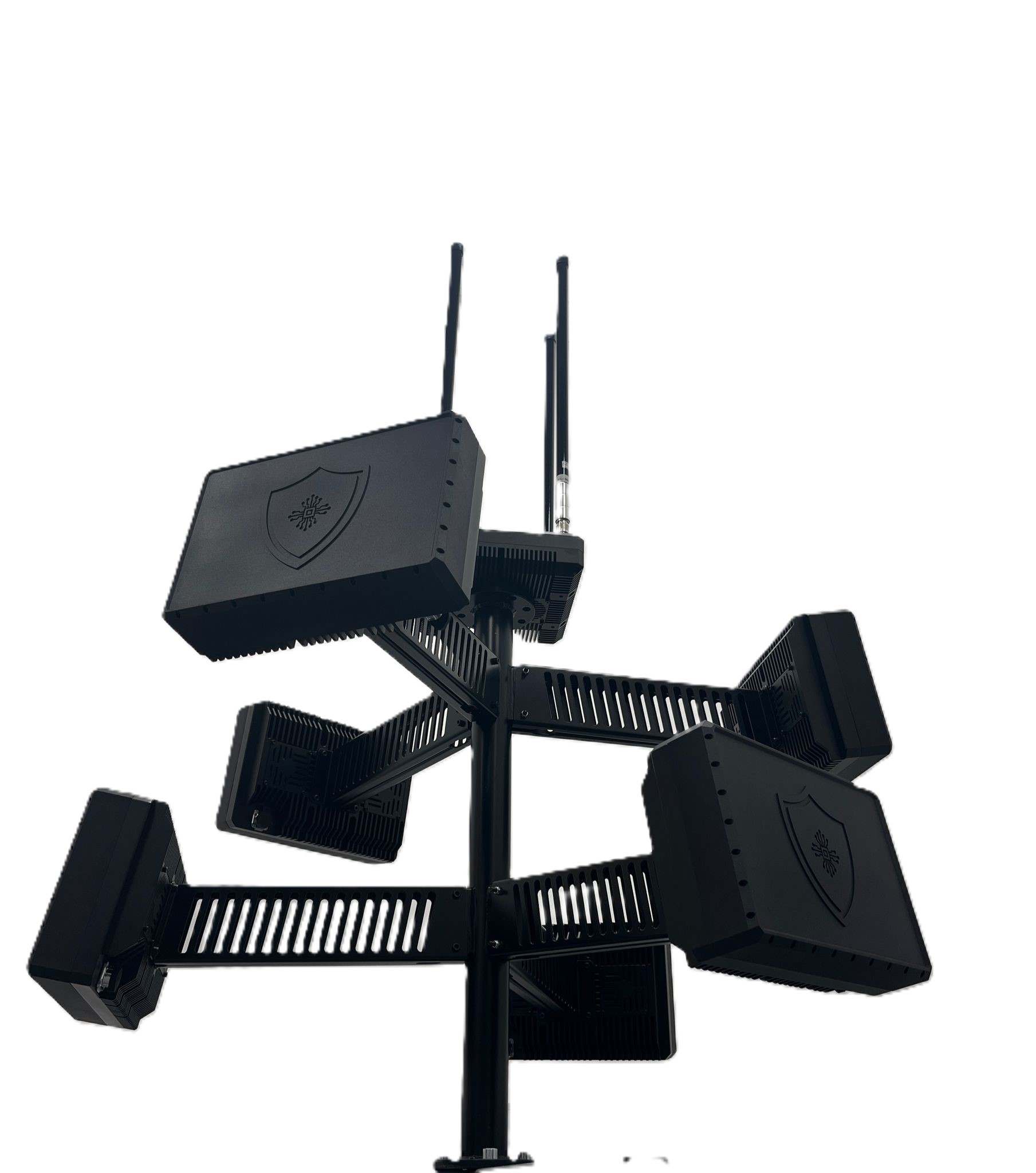

LD-600 System
Overview
Specifications
Use Cases
Related Products
System Overview

Strategic LD-600

The LD-600 is an advanced anti-drone defense system engineered to provide reliable protection for stationary installations and armored units. Designed for high-risk environments, it ensures strong and consistent performance in modern operational scenarios.

It delivers full-spectrum defense by covering a wide range of frequencies, including GPS, GLONASS, and common drone communication bands such as 400 MHz, 900 MHz, 2.4 GHz, 5.2 GHz, and 5.8 GHz. With its 360-degree protective shield, the system ensures complete area coverage against aerial threats.

Equipped with advanced radar and RF sensor technology, the LD-600 enables automated detection and neutralization of threats. Its dual-power compatibility (24V and 220V) adds flexibility, making it suitable for diverse deployment conditions with minimal human intervention.

360° Full Coverage Shield

Provides complete 360-degree protection, ensuring no blind spots against incoming drone threats.

Wide Frequency Suppression

Covers GNSS systems (GPS, GLONASS) and major RF bands (400 MHz to 5.8 GHz) for effective disruption of drone communication and navigation.

Advanced Detection System

Integrated radar and RF sensors enable accurate detection, tracking, and identification of drone activity.

Automated Threat Neutralization

Supports autonomous operations, allowing the system to detect and counter threats with minimal human involvement.

Dual Power Flexibility

Operates on both 24V and 220V power sources, making it adaptable for field deployment and fixed installations.

Key Specifications
Frequencies: 400 MHz, 900 MHz, GNSS L2 & L1, 2.4 GHz, 5.2 GHz, GH5.8 z GIHSM
Effective Coverage Range10 Km+
IP RateIP65
Power SupplyAC220V±20
Operating Time7*24H
Sectoral Angle72 Degree
Software InterfaceC2
Temperature-20 to +60
Radar Bands supported30MHz to 6GHz
Radar Accuracy3° Hovering ˝10° Moving
Radar Sensitivity-115dBm(25kHz)
Radar Directivity360° Omni-Directional
